Sample Calibration

Specifications for Calibrator





Calibrator

Cal 016

Calibrator API Value

197

Calibrator cps for the First 5 Minutes

193.2

Background cps

21.2

Calibrator cps for the Last 5 minutes

194.6

Average Calibrator cps

193.9

Net Calibrator cps (Shielding Compensated)

178.21

Probe Cal Ratio (API/cps)

1.105





All the user has to do is choose the worksheet corresponding to the proper calibrator (provided by Minette Consulting), and type in/copy three numbers:

1)     Calibrator cps for the First 5 Minutes

2)     Background cps

3)      Calibrator cps for the Last 5 minutes



                        black bar.gif

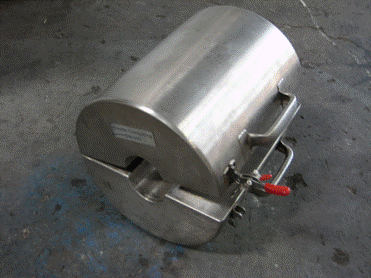

Calibrator Specifications:

Weight: 70 lb

Length 12”

ID:  2.5”

OD: 10”



Features:

Directly tied to the API test pits via the Minette Consulting Master Calibrator

API values established to within 1 API (Typical Value 210 API).

Accommodates probes up to 2.4” in diameter

Stainless Steel Construction

Oilfield Rugged and Reliable

Hinged for Ease of Use
